Sharsmith Herbarium 2013

By Carol Mattsson, Chapter Newsletter Editor

On September 15, 2013 I joined several other Chapter members in a field trip to visit Sharsmith Herbarium at San Jose State University. The trip was led by Curator Toni Corelli and Assistant Curators Teri Barry and Lars Rosengreen.

The herbarium is named for botanist Carl Sharsmith, who started the herbarium and collected and mounted over 15,000 specimens. We started our tour in the room with the many rows of cabinets holding the herbarium sheets.

SPECIMEN SHEETS

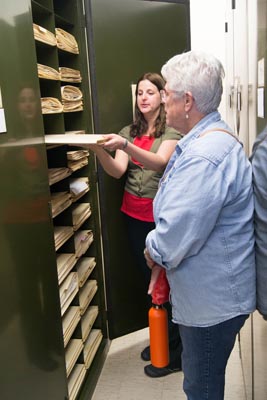

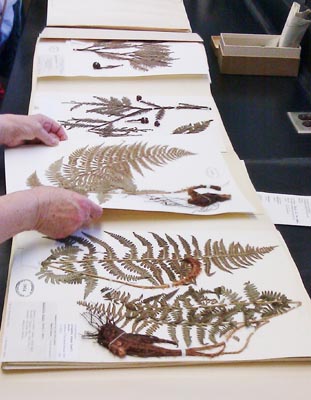

Removing specimens from herbarium cabinet. Photo: Judith Elaine Bush The curators had taken out several specimen sheets for us to examine Two people examining herbarium sheets. We learned that the most damage to the specimens is from insects. Thus the first step for a dried, pressed plant specimen to become part of the herbarium collection is to freeze it for a week at -20 degrees F. When we examine the specimen we are to keep the sheet specimen-side up, and not roll or bend it in any way. After we examine the specimen we put the sheet in a special case designated for a refreeze before being restored to its permanent cabinet.

I like ferns so I enjoyed a good look at a specimen of Dryopteris arguta. herbarium sheet Dryopteris arguta.  Photo Richard Tiede This specimen had the roots tied to the page with special linen thread, and in other places the specimen was attached to the page with special linen strips. As you can see in the photo, each herbarium sheet has a unique identifying number, called the "accession number." The sheets contain labels identifying the specimen: The lower right is the original label, showing plant name, date collected and by whom, location found, and other information. A second newer, smaller label is being added to all the specimens now, giving the plant's name in the 1993 version of the Jepson Manual.

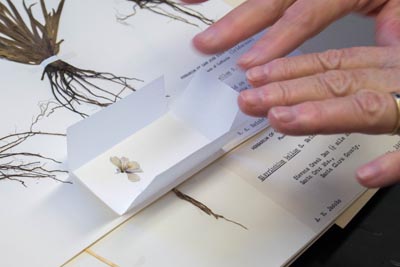

Other specimen sheets include a "fragment folder," which contains pieces of the plant that may be examined under a microscope Fragment folder for Sisrinchium bellum.  Photo Judith Elaine Bush. To make the fragment more pliable so it may be placed under a microscope without breaking it, it may be rehydrated in a preservative liquid called Pohl's solution. After the botanist finishes her examination of the fragment, she returns it to the fragment folder, where it dries out again and continues to be preserved.

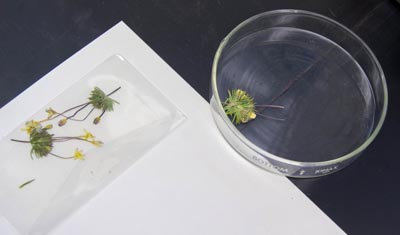

Fragment folder next to Petri dish of Pohl's solution

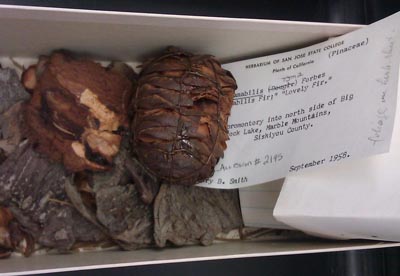

Large specimens that can't be flattened, such as pine cones, are stored in a separate box. The box contains a specimen label and the specimen sheet and box reference each other. Fat specimens in a box Note how the cone is sewn all around so its pieces remain in place.

One use of the herbarium specimens is for molecular analysis of the plants. The DNA is still found in the plant material. Plant specimens continue to be added to the SJSU Herbarium collection. The curators give priority to plants collected in San Mateo and Santa Clara Counties that have no specimen in the herbarium, or no specimen since the early 1900's.

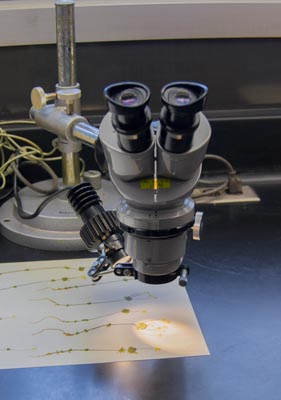

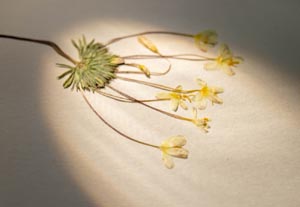

MicroscopeSpecimen (dried, flat) plant in microscope light

HOW TO MOUNT A SPECIMEN

After examining the specimens, the tour left the cabinet room and walked across the hall to the Botany lab for a hands-on demonstration of mounting dried plants onto specimen sheets, for storage in the herbarium. Toni Corelli demonstrating how to mount a plant specimen

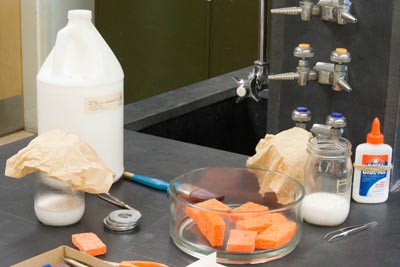

Toni Corelli demonstrated mounting a specimen first. First she laid out the plants on the table to find an arrangement that would all fit on a herbarium sheet, keeping in mind room for the labels and accession number. Next she squeezed some glue out onto the table, then added a little water and stirred it to a certain consistency. Then with a brush Herbarium glue, orange sponges, other tools on table she spread out the glue out to about the size of a herbarium sheet.

Toni then placed the plants on the glue and dabbed them with a sponge so every part of the underside of the plant was coated with glue. From there, she picked up the plants with tweezers and transferred them to the new herbarium sheet. She placed layer of waxed paper over the plant, and closed the brown paper folder over the entire herbarium sheet and plant. Then a piece of cardboard went on top, weighted down by bricks enclosed in paper. After a day the glue will have dried and the specimen will be ready to be labeled and stamped with its accession number.

The glue remaining on the table is ready to be spread smooth again to receive the next specimen. But before we did that we admired the "glueprint" that remained where the plant had been. glueprint: glue spread on table showing imprint of dried plant With Toni's encouragement, we all tried our hand at mounting a herbarium specimen. The Assistant Curators Teri and Lars helped us.

Two women mounting herbarium specimens

Former herbarium curator Natalie Hopkins donated a collection of dried plants specifically for the purpose of volunteers to practice mounting them as specimens.Interleaving mounted specimens to dry

After our mounting practice, Toni showed us how botanists can use the consortium of California Herbaria website to look up specimens from the SJSU Herbarium online, along with specimens stored at other herbaria. From the website ucjeps.berkeley.edu/consortium/ you may look up any plant in the participant herbaria by scientific name, location, county, collector etc. For each specimen found the search will show all the information found on the specimen label. See more references and websites below.

The last phase of the tour was to walk outside behind Duncan Hall to stroll through the native plant garden. It was a warm sunny day and it was a delight to be amongst the well-maintained plants.People talking outdoors

The Herbarium is looking for volunteers to help with various activities, including mounting some of their backlog of specimens. If you are interested in helping out, or would like to visit the herbarium, contact Toni Corelli at This email address is being protected from spambots. You need JavaScript enabled to view it..

REFERENCES

After the tour Toni Corelli sent these references for learning more about The Sharsmith Herbarium in particular and herbaria in general:

People mounting plant specimens at a table

A reference book for learning more: The Herbarium Handbook by Bridson and Forman

Also just Google: "herbarium how to" to see many that will answer more of your questions.

The Jepson Interchange:
ucjeps.berkeley.edu/interchange

Consortium of California Herbaria:
ucjeps.berkeley.edu/consortium

Jepson eflora:
ucjeps.berkeley.edu/IJM_toc.html

Flickr set Sharsmith Herbarium visit September 15, 2013:
www.flickr.com/photos/tcorelli/sets/72157635551431912/with/9767486614/

Photos from September Sharsmith Herbarium visit from other participants:
http://cnps-scv.org/photos/ and click on "Herbarium"

People between cabinet and desks

Toni's Flickr page:
www.flickr.com/photos/tcorelli

Carl W. Sharsmith Herbarium:
www.sjsu.edu/herbarium

A great book about Carl: O'Neill, Elizabeth Stone, Mountain Sage: The Life of Carl Sharsmith Yosemite Ranger/Naturalist 2nd ed. (1996)
